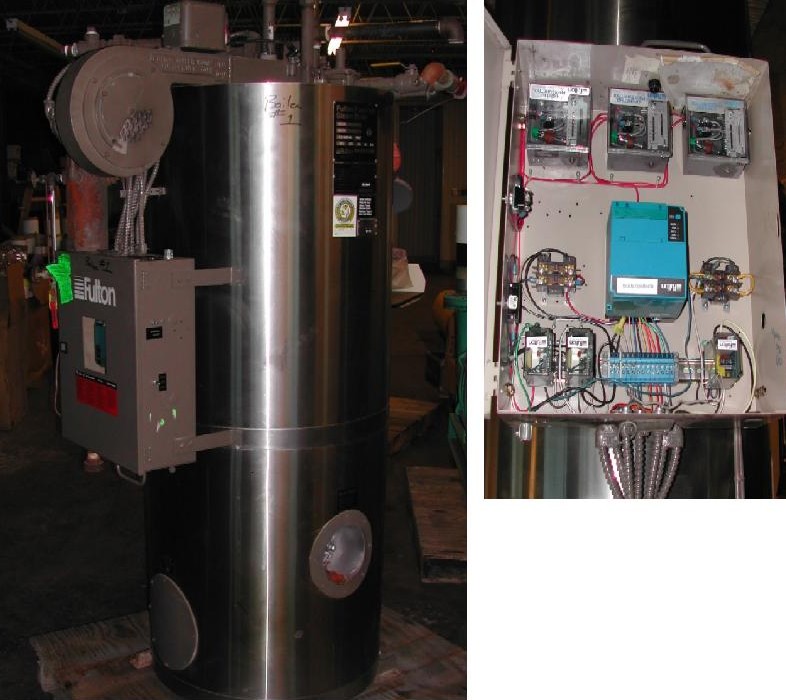

A vertical tubeless boiler is a relatively simple design. There are not tubes or coils to rust or burn out peridically. Single, complete control panel box houses the 7800 and all other controls for safe operation. Heat convection fins surround the entire water jacket, transmitting additional heat into the outer side of the water vessel as the hot gases are pushed upward to exhaust.
Output 1000 BTU/hr =335
Steam Output LB/hr = 345
Approximate fuel consumption at rated capacity. Natural Gas FT3/hr=420
Electric power requirements in AMPS. 120V, 60 CY, 1 Phase 5.2
