Rema Condensate Return Systems Information
Item Number1390

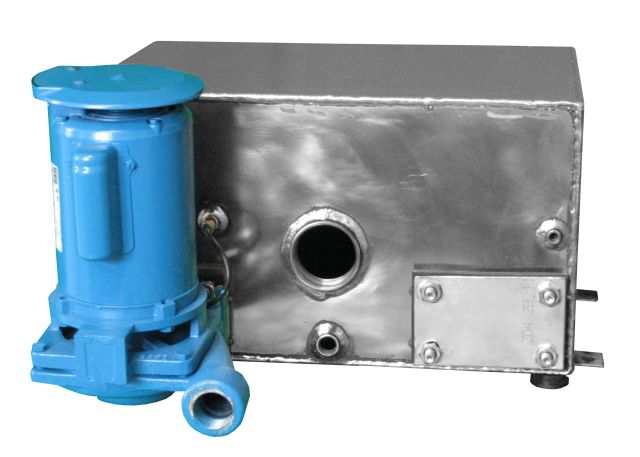

MachineRema Condensate Return Systems
DescriptionModel # BR-SS Series
  • Units from 6,000 to 50,000 sq. ft. EDR systems
  • Simplex or Duplex designs (14 gallon and larger are plated for duplex)
  • Gasket included to switch to Duplex (14 gallon or larger)
  • Rema Units come with low height NPT inlet for easy return line piping
  • Separate NPT connections for secondary vent for safe operation
  • All Rema units come with NPT drain connection
  • Square D Float switch (Double pole) - on Rema SS simplex models
  • Square D Mechanical alternator on Rema SS duplex models
  • Rema SS Condensate and Boiler Feed are manufactured with a 304 2B Stainless Steel finish
  • 11 gauge Stainless Steel
  • Mild Steel Units Available
  • Easy to install units
  • Vertical pull out Burks pumps make unit easy to service
  • Rema tests all completed units 100% at the factory
  • 1/8" tap vent line automatically vents and flushes seal area of tank
  • Mounting brackets to mount unit to floor
  • Optional equipment: - Control Panel - Inlet basket strainer - Y-strainer - Sight Glass - Thermometer - 1/2, NPT Drain
  • Pump seal maximum temperature 225F (107C)
  • 14-45 gallon available in simplex (Units will have a float switch instead of mechanical alternator).
  • Call about our tanks up to 800 Gallons.
  • Rema Condensate Return Systems
