Reimers RHC Electric Steam Boilers Information
Item Number1373

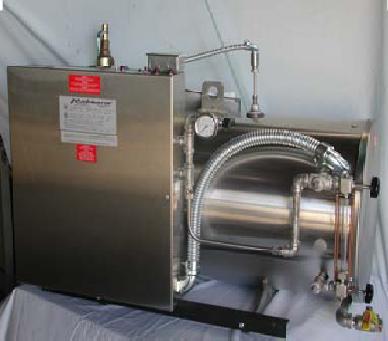

MachineReimers RHC Electric Steam Boilers
DescriptionRHC MODELS - Condensate Tank/Pump Water Feed with rectangular condensate tank with turbine pump attached to the boiler, less solenoid valve. Equipped with adjustable pressure control and manual reset hi-limit control, heavy duty magnetic contactors, combination low water cut-off and water controller, 150# forged steel, flange mounted heating elements with stainless steel sheathing, solenoid valve, strainer, pressure gauge, ASME safety valve, check valve, blowdown valve, steam outlet valve, water gauge glass, off-on switch with pilot light. Shell is of ASME construction wrapped in 2" fiberglass insulation & encased with 20 ga. Stainless Steel jacket.
  • Models R-10, R-20, KW 10/20, BHP 1.0/2.0, Lbs/Hr. 34 /69
  • Model R-30 with 600 Volt rating = 2.5BHP/25KW, KW30, BHP 3.0, Lbs/Hr. 104.
  • Reimers RHC Electric Steam Boilers
