Chicago Tandem Gas-Heated Flatwork Finishing Information
Item Number	1253
Quantity	1
Machine	Chicago Tandem Gas-Heated Flatwork Finishing

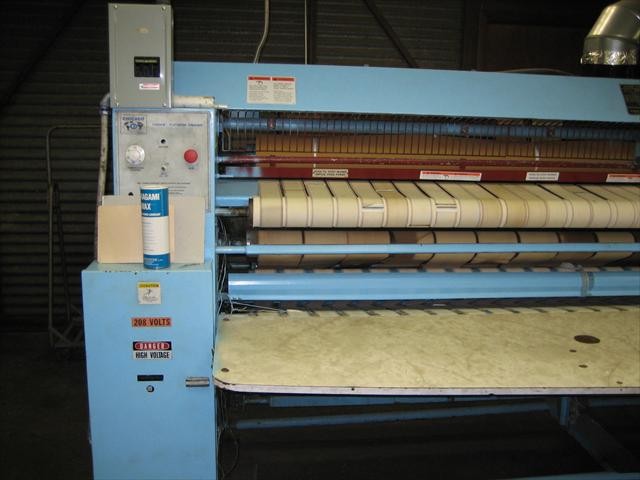

Description	The Tandem Gas 14 is a one piece unit that will dry, iron and fold flatwork. Model # TG-14 1103P Serial # SN40663 - Usable cylinder length 110" (280cm) - Electrical Voltage AC 3-Phase 208/230/360/460/550 - Total Current Amp 8.2/7.5/4.9/3.8/3.1 - Frequency (Hz) 50/60 - Gas Inlet Size 1" - Maximum Gas Input per Hr (BTU) 250,000 - Average Gas Input per Hr. (BTU) 137,500 - Motors: Drive 1/2HP, Combustion blower 1/3HP, Exhaust blower 1 HP - Production Variable Speed Drive Output (feet per minute) Min 10: Max 28 - Operating temperature range 200-400F - Canopy air discharge (CFM) (at 1" SP) and vent diameter 10" - Dimensions with front shelf, L146"x W50" x H87" - Approximate Wt: 2600 ** A complete instruction manual is included. New ribbons have been installed. You will find this machine in Excellent working order.

Please feel free to Contact Us with any
Questions or Equipment Inquiries. Thank You!
